How Bi-Persistence Clustering Works

biperscan adapts HDBSCAN* to extract clusters from bi-filtrations over a distance scale and an centrality scale (other lens-dimensions are untested but might work as well). This type of clustering is particularly useful for detecting (lower-density) branches in a datasets. Such branches are difficult to detect with clustering algorithms because they are connected to a central core through short distances. In other words, there is no gap or low-density region separating the branches and the central core. Hierarchical and density-based clustering algorithms rely on such a gap to detect clusters, and therefore struggle to detect branches.

A bi-filtration effectively introduces a gap between the branches by filtering out central points with a varying centrality threshold, allowing the branches to be detected as separate connected components (i.e., clusters).

While biperscan is implemented to be fast, it does not scale nicely with data size. For practical applications, we instead recommend pyflasc: our more efficient branch & cluster detection algorithm. The main difference between biperscan and pyflasc is that pyflasc first extracts HDBSCAN* clusters and then extracts branches within the clusters, rather than trying to detect both at the same time. This results in two fast filtrations, instead of one expensive bi-filtration.

%load_ext autoreload
%autoreload 2

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from matplotlib.colors import ListedColormap

from hdbscan import HDBSCAN
from biperscan import BPSCAN

from lib.drawing import plot_five_points_all, plot_five_points_minpres
from lib.plotting import *

palette = configure_matplotlib()

The data

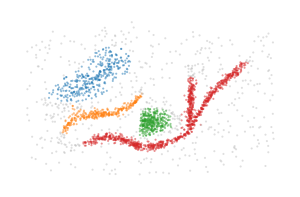

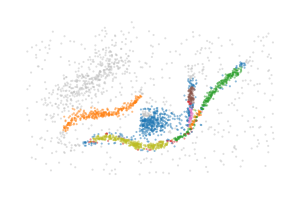

This example uses a noisy, 2D dataset from pyflasc’s examples, originally adapted from HDBSCAN*’s soft clustering tutorial. One of the clusters has a Y-shape and contains three branches. These (kind of) branches are not detected by HDBSCAN and other distance-based clustering algorithms (demo). BPSCAN is able to detect the branches as distinct clusters, but struggles to generate a good labelling and is quite sensitive to the input parameters:

X = np.load("data/flared/flared_clusterable_data.npy")
c = BPSCAN(
  min_samples=20,
  min_cluster_size=80,
  distance_fraction=0.03
).fit(X)

scatter_kwargs = dict(s=1, alpha=0.5, linewidths=0, edgecolor="none")
color_kwargs = dict(
    cmap=ListedColormap(["silver"] + [f"C{i}" for i in range(10)]), vmin=-1, vmax=9
)

sized_fig(0.5)

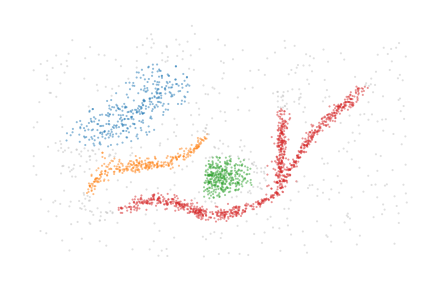

plt.scatter(
    *X.T,
    c=HDBSCAN(min_samples=25, min_cluster_size=80).fit_predict(X),
    **scatter_kwargs,
    **color_kwargs
)
plt.subplots_adjust(0, 0, 1, 1)
plt.axis("off")
plt.savefig("images/flareable_hdbscan_clusters.pdf", pad_inches=0)
plt.show()

sized_fig(0.5)

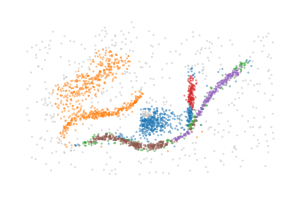

plt.scatter(
    *X.T,
    c=c.labels_at_depth(1),
    **scatter_kwargs,
    **color_kwargs
)
plt.subplots_adjust(0, 0, 1, 1)
plt.axis("off")
plt.savefig("images/flareable_bpscan_clusters.pdf", pad_inches=0)
plt.show()

The BPSCAN algorithm

The remainder of this notebook explains how the BPSCAN algorithm works and is separated into sections:

• The centrality lens

• The minimal presentation

• Extracting merges

• Constructing a merge hierarchy

• Labelling clusters

The centrality lens

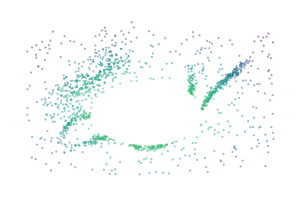

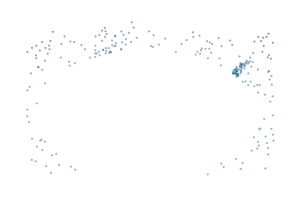

A centrality lens is used to detect branches in the bi-filtration. Effectively, the process continually looks for clusters while increasing a centrality threshold that allows more central points to enter the filtration. Initially, at low thresholds, all central points are excluded, which separates the branches from each other so they can be detected as clusters. As the centrality threshold increases, the distance between the branches shrinks until they are detected as a single cluster.

for i, threshold in enumerate([0.4, 0.7, 1.0]):
    sized_fig(0.33)
    mask = c.lens_values_ < threshold
    plt.scatter(
        *X[mask].T,
        c=c.lens_values_[mask],
        cmap="viridis",
        vmin=0,
        vmax=1,
        **scatter_kwargs
    )
    plt.subplots_adjust(0, 0, 1, 1)
    plt.axis("off")
    plt.savefig(f"images/flareable_centrality_threshold_{i}.pdf", pad_inches=0)
plt.show()

Biperscan supports three centrality lenses:

• negative_distance_to_mean

• negative_distance_to_median

• negative_eccentricity

Only the negative_eccentricity works with precomputed distances.

The minimal presentation

Where hierarchical clustering extract clusters from a minimum spanning tree, multi-parameter persistence works with minimal presentations. The idea is the same: minimum presentations contain all topology changing edges in a bi-filtration (we only consider 0-dimensional persistence, so edges are the highest dimensional simplex we use). Because the bi-filtration considers two parameters, minimal presentations typically contain more than N-1 edges.

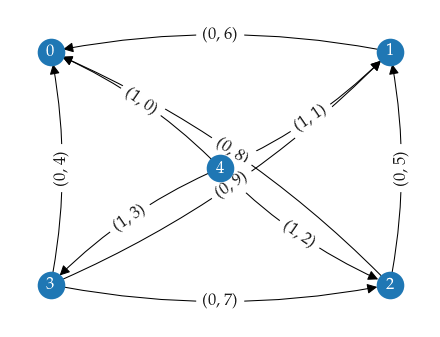

As example, consider five points that lie on the corners and center of a rectangle. A bi-filtration needs to consider all edges between the points, but only a few of those edges are the first to connected points together. These latter edges form the minimal presentation!

We made a small but influential change to the algorithm that constructs the minimal presentation: points are connected to their lowest lens-grade accessible ancestor rather than their direct parent. The default algorithm already does this to some degree. We added a step to ensure it always happens.

sized_fig(0.5, aspect=0.75)
plot_five_points_all()
plt.subplots_adjust(0, 0, 1, 1)
plt.savefig("images/five_points_all.pdf", pad_inches=0)
plt.show()

sized_fig(0.5, aspect=0.75)
plot_five_points_minpres()
plt.subplots_adjust(0, 0, 1, 1)
plt.savefig("images/five_points_minpres.pdf", pad_inches=0)
plt.show()

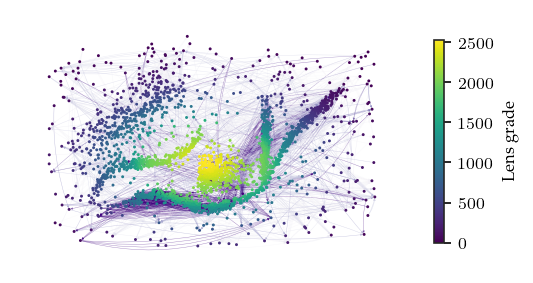

The minimal presentation for the noisy data shows why the noise points are tricky. The repeated edges, which occur between ancestors connected to multiple other points, lie between the most eccentric (noise) points.

minpres = c.minimal_presentation_

sized_fig(0.5)
minpres.plot_network(
    layout={i: (c[0], c[1]) for i, c in enumerate(X)},
    labels=False,
    node_kws=dict(node_size=2, edgecolors="none", linewidths=0),
    line_kws=dict(width=0.2, arrowsize=2, alpha=0.5, edge_vmin=0, edge_vmax=100000),
)
plt.subplots_adjust(0, 0, 1.2, 1)
plt.savefig('images/flareable_minimal_presentation_network.png', pad_inches=0)
plt.show()

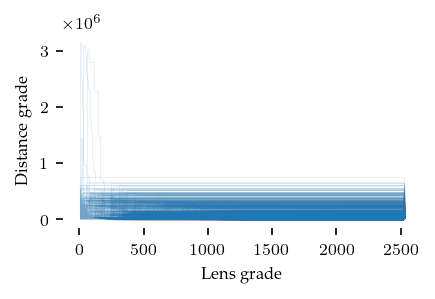

Another way to view the minimal presentation is through the range of lens–distance grades data points are alive. The edges in the minimal presentation represent when the child dies into the parent. So, we can draw a curve for each point, indicating at which grades it merges with a parent. The area under these curves, represents the persistence of the data points. Meaningfully combining lens and distance values is tricky, as they do not necessarily relate to each other.

Visually, the lens–distance plot is not very informative, but it does indicate that most points merge at very low distance grades.

sized_fig(0.5)
minpres.plot_persistence_areas(
    line_kws=dict(alpha=0.1, linestyle="-", linewidths=0.5)
)
plt.subplots_adjust(0.13, 0.23, 1, 1)
plt.savefig("images/flareable_persistence_areas.png", pad_inches=0)
plt.show()

Extracting merges

The next step for adapting HDBSCAN would be to convert the minimal presentation into a linkage hierarchy, which would then be simplified using a minimum cluster size threshold to produce a condensed cluster tree.

It turns out that extracting merges between clusters with a minimum size is easier when done on the minimal presentation directly, rather than a bi-graded linkage hierarchy. We do provide code that computes such linkage hierarchies, but do not use the hierarchy in the BPSCAN algorithm. Bi-graded linkage hierarchies are considerably larger than the minimal presentation they originate from because they enumerate all data-point combinations that exist throughout the bi-filtration, making them more expensive to create and work with. Minimal presentations encode many of these combinations implicitly.

To explain how we extract merges, we first need to explain how minimal presentations are represented. Minimal presentations are constructed in the form of a (boundary) matrix. In our case, rows represent data points (ordered with increasing lens grade) and columns represent edges (ordered with lexicographically increasing bi-grades). The minimal presentation for the five points on a rectangle is shown below. The 1s indicate which points are connected in each column:

  0, 4  0, 5  0, 6  1, 0  1, 1  1, 2  1, 3
  0<-3  1<-2  0<-1  0<-4  0<-1  0<-2  0<-3
0   1           1     1     1     1     1
1         1     1           1
2         1                       1
3   1                                   1
4                     1

To extract the merges, we look for two columns with the same child point. These columns represent two edges connected to the one point: one to each (potential) cluster connected through the child point. There are three column pairs with this pattern in the example minimal presentation. One connecting different parent points and two connecting to the same parent points. Finding these column pairs is easy, by traversing the minimal presentation from left to right and storing the previous column seen for each child point. Lets focus on the one connecting different parent points for now:

  0, 4  0, 5  0, 6  1, 0  1, 1  1, 2  1, 3
  0<-3  1<-2  0<-1  0<-4  0<-1  0<-2  0<-3
0   1           1     1     1     1     1
1         1     1           1
2         1 <-------------------> 1
3   1                                   1
4                     1

To check whether these edges merge clusters at the given minimum cluster size, we need to figure out if both parents connect to enough other points before connecting to each other. For this purpose we interpret the matrix as an undirected graph, facilitating traversal. In this case, we consider all edges to the left of bi-grade \((1, 5)\), the grade induced by the selected columns. Then, we perform a set-symmetric-difference-like iteration that traverses from the parent with the lowest distance edge and collects all points connected to it within that distance. The iteration stops when one side connects to a point already contained by the other side or when both sides do not have any edges remaining. The child point is excluded from the traversal, as it would be found by both sides immediately, thereby stopping the iteration. Merges are stored throughout the iteration when both sides have reached the minimum cluster size.

In the case were the parent match, we traverse from the parent and child points instead. Because this pattern tends to occur multiple times between the same points, we also use the left-most column’s distance grade as an upper distance limit, avoiding re-checking the same edges multiple times. In the example shown below, a merge would be found between points (1, 2) and (0, 3, 4).

  0, 4  0, 5  0, 6  1, 0  1, 1  1, 2  1, 3
  0<-3  1<-2  0<-1  0<-4  0<-1  0<-2  0<-3
0   1           1     1     1     1     1
1         1     1 <-------> 1
2         1                       1
3   1                                   1
4                     1

On noisy data sets, it can be beneficial to set an upper distance bound for the traversal to exclude noisy points. In addition, the procedure typically finds multiple merges between the same root points at a particular lens grade. These merges differ in their distance grade, and show how points enter the clusters over the distance. We only use the largest distance merge per lens grade and root point pair. Below are the selected merges found for the noisy data example:

sized_fig(0.5, aspect=0.8)
merges = c.merge_hierarchy_
merges.plot_merges(*X.T, s=0.33, title_y=0.6, arrowsize=3, linewidth=0.5)
plt.subplots_adjust(0, 0, 1, 0.975, wspace=0)
plt.savefig("images/flareable_merges.png", pad_inches=0)
plt.show()

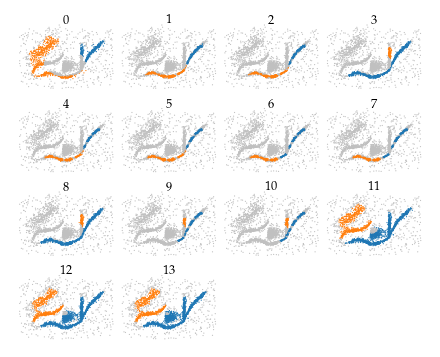

Clearly, all clusters and branches are detected by at least one merge in this example, indicating the bi-filtration is able to detect both patterns. However, extracting a cluster labelling from these merges is still tricky, as there appear to be several (near) duplicates for each merge.

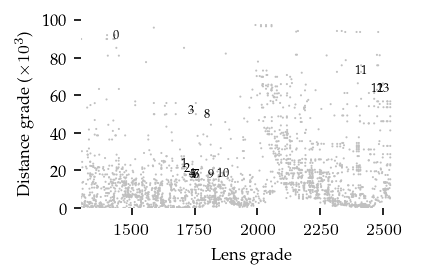

Constructing a merge hierarchy

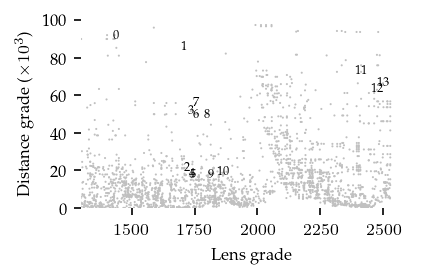

In an effort to detect which merges are (near) duplicates, we construct a hierarchy. Merges are connected if they have the same parent root point. If the higher-value child root point is contained in the lower-value child root point’s cluster, the edge is labelled as same_parent indicating the merges are (near) duplicates. Otherwise the edge is labelled as into_parent, indicating the parent cluster contains multiple different child clusters. The same procedure is applied to merges with the same child root point. This typically results in a graph with few connected components.

To ensure the graph is connected, we compute a hamming loss between the merges in the components, where the child and parent side membership is interpreted as a prediction label. The shortest connections between the components are repeatedly added until all components are connected:

sized_fig(0.5)
merges.plot_persistence_areas(line_kws=dict(width=0.5), font_kws=dict(font_size=6))
plt.subplots_adjust(0.12, 0.17, 1, 0.97)
plt.yticks(plt.gca().get_yticks())
plt.gca().set_yticklabels([f"{int(v/1000)}" for v in plt.gca().get_yticks()])
plt.xlim(600, plt.xlim()[1])
plt.ylim(0, 100000)
plt.ylabel("Distance grade ($\\times 10^3$)")
plt.subplots_adjust(0.17, 0.23, 1, 0.97)
plt.savefig("images/flareable_merge_hierarchy.png", pad_inches=0)
plt.show()

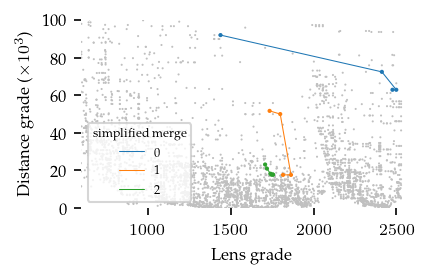

Now, the merges connected through same_parent, same_child, or duplicate edges are aggregated into a single node, while maintaining their into_parent and into_child edges. The resulting simplified graph has a single node for all the (near) duplicate merges and indicates whether connected nodes are part of the parent or child side:

sized_fig(0.5)
simplified_merges = c.simplified_hierarchy_
simplified_merges.plot_persistence_areas(
    node_kws=dict(node_size=2), line_kws=dict(width=1)
)
plt.yticks(plt.gca().get_yticks())
plt.gca().set_yticklabels([f"{int(v/1000)}" for v in plt.gca().get_yticks()])
plt.xlim(600, plt.xlim()[1])
plt.ylim(0, 100000)
plt.ylabel("Distance grade ($\\times 10^3$)")
plt.subplots_adjust(0.17, 0.23, 1, 0.97)
plt.savefig("images/flareable_simplified_hierarchy.png", pad_inches=0)
plt.show()

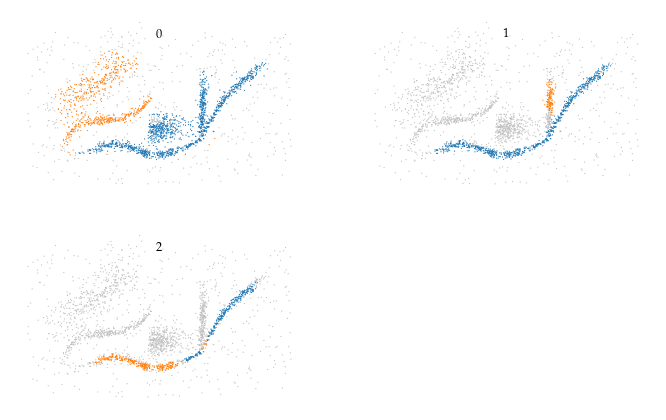

The main reason for this aggregation step is to reduce the number of merges and combine the (near) duplicate merges. For the noisy data, five merges remain, clearly identifying the cluster at multiple distance scales:

sized_fig(0.5, aspect=0.8)
simplified_merges.plot_merges(*X.T, s=0.5, title_y=0.9)
plt.subplots_adjust(0, 0, 1, 0.98, wspace=0, hspace=0.5)
plt.savefig("images/flareable_aggregated_merges.png", pad_inches=0)
plt.show()

The green points indicate points that are contained in both the parent and the child side. While we avoid this possibility in individual merges, combining them in the aggregation step can introduce overlaps.

Labelling clusters

The final step is to convert the simplified hierarchy into cluster labels. This is done through a depth-first traversal (ordered by node index) while keeping track of the points already assigned a label. At each node, first its children are processed. Then, the child-side points that are not already assigned a point become a new group. This group is appended to the last added child-side group if it does not contain more than the minimum cluster size. Otherwise, the new group is accepted as a cluster on its own. The same procedure is applied to the parent-side.

Sometimes, the simplified hierarchy has multiple roots. In that case, a traversal is started from all roots in decreasing node index order. Nodes that were visited before are skipped in the traversal.

A depth-limit parameter can be used to create a coarser cluster labelling. Due to the traversal, the labelling can appear as if multiple clusters lay on top of each other. For example, at depth 2, the red cluster is spread around the green cluster. Other strategies for creating a cluster labelling might avoid this problem.

for i in range(3):
    sized_fig(0.25)
    print()
    plt.scatter(*X.T, c=c.labels_at_depth(i), **scatter_kwargs, **color_kwargs)
    plt.subplots_adjust(0, 0, 1, 1)
    plt.axis("off")
    plt.savefig(f"images/flareable_labels_at_depth_{i}.pdf", pad_inches=0)
plt.show()

BPSCAN also provides membership vectors, indicating the data point membership for all simplified merges. Weighted membership is not supported yet but could be computed, as BPSCAN tracks at which grades points enter the merges.

The membership columns are ordered using the same depth-first traversal strategy. As a result, using the first non-zero column as cluster label segments the clusters quite neatly.

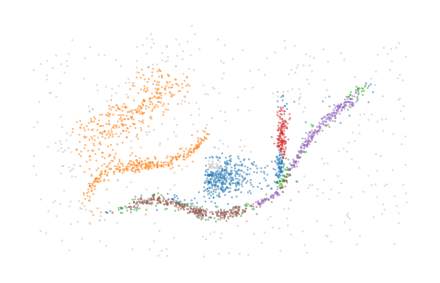

sized_fig(0.25)
plt.scatter(*X.T, c=c.first_nonzero_membership(), **scatter_kwargs, **color_kwargs)
plt.subplots_adjust(0, 0, 1, 1)
plt.axis("off")
plt.savefig(f'images/flareable_first_nonzero_membership.pdf', pad_inches=0)
plt.show()

Alternatively, the membership vectors can be used for further downstream processing. For example, they can be projected to colors using the CIELAB colorspace:

from sklearn.manifold import MDS
from colormath.color_objects import LabColor, sRGBColor
from colormath.color_conversions import convert_color


def map_to_cielab(values):
    # Scale primary dimension to be within 0-100
    # Translate other dimensions to be around 0
    i = np.min(values[:, 0], axis=0)
    a = np.max(values[:, 0], axis=0)

    scaled = np.empty((values.shape[0], 3), dtype=np.float64)
    scaled[:, 0] = 80
    scaled[:, 1:] = (values - i) / (a - i) * 100
    scaled[:, 1:] -= np.mean(scaled[:, 1], axis=0)

    # Interpret as CIELAB and convert to RGB
    rgbs = []
    for i in range(len(scaled)):
        rgb = convert_color(
            LabColor(scaled[i, 0], scaled[i, 1], scaled[i, 2]), sRGBColor
        )
        rgbs += [(rgb.clamped_rgb_r, rgb.clamped_rgb_g, rgb.clamped_rgb_b)]
    return rgbs, scaled


mapping = MDS(n_components=2).fit_transform(c.membership_)
rgbs, scaled = map_to_cielab(mapping)

sized_fig(0.25)
plt.scatter(*X.T, c=rgbs, **scatter_kwargs)
plt.subplots_adjust(0, 0, 1, 1)
plt.axis("off")
plt.savefig('images/flareable_membership_colors.pdf', pad_inches=0)
plt.show()
